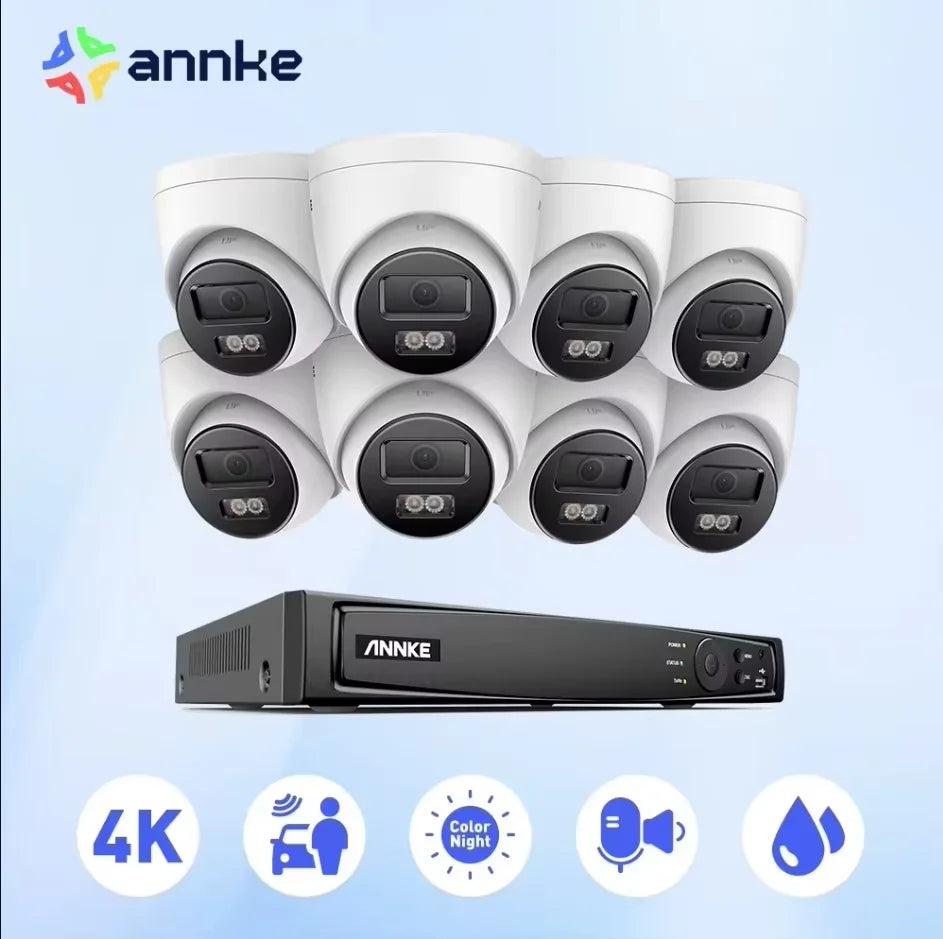

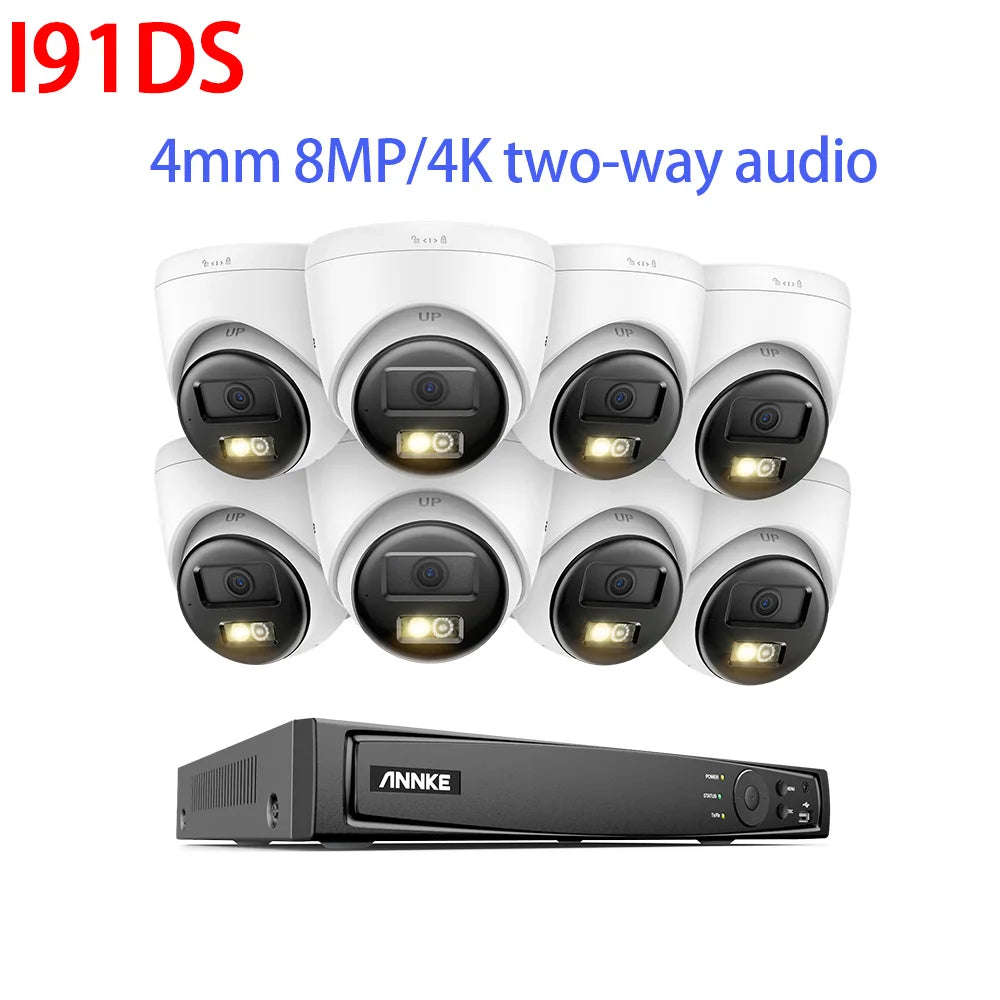

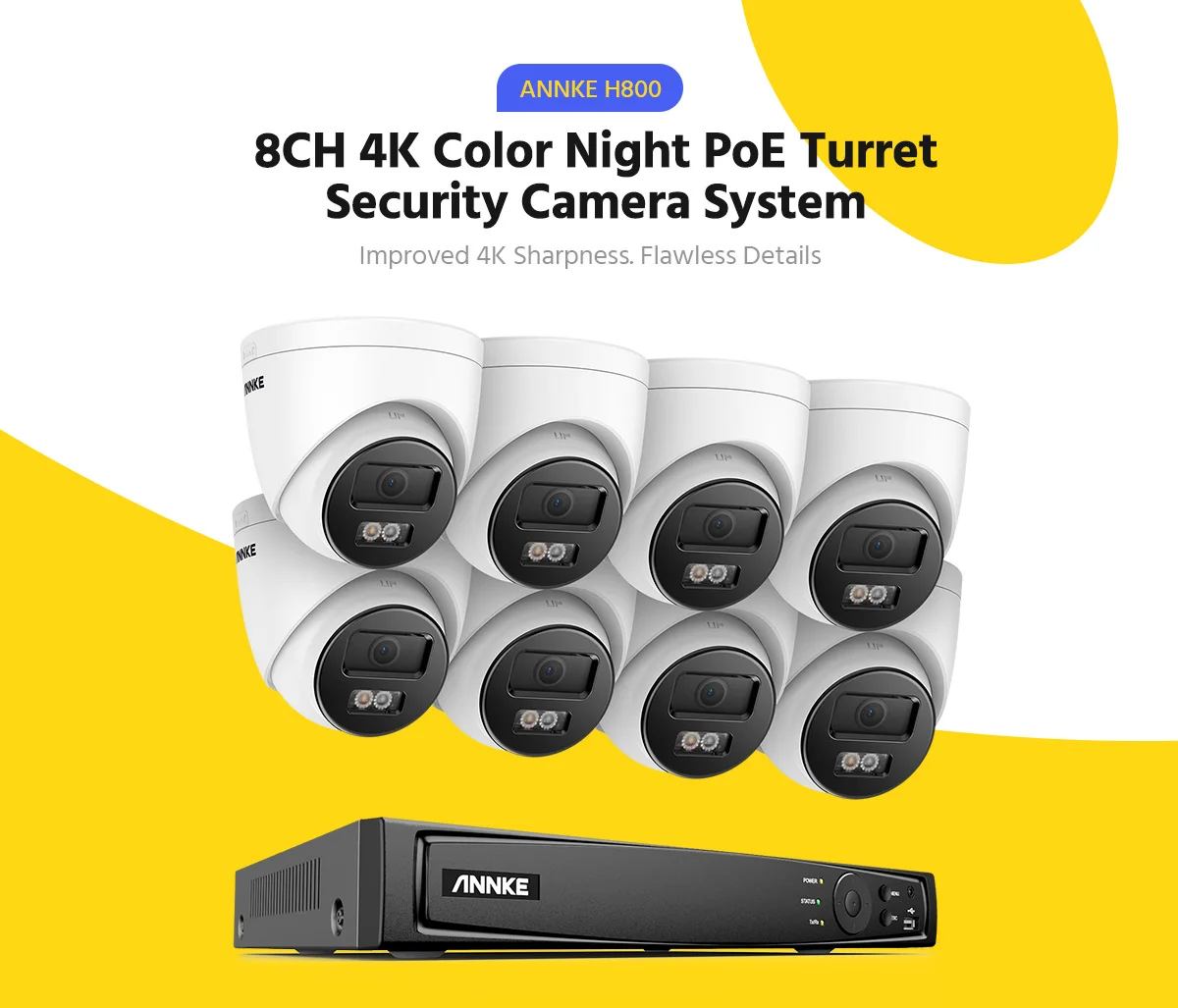

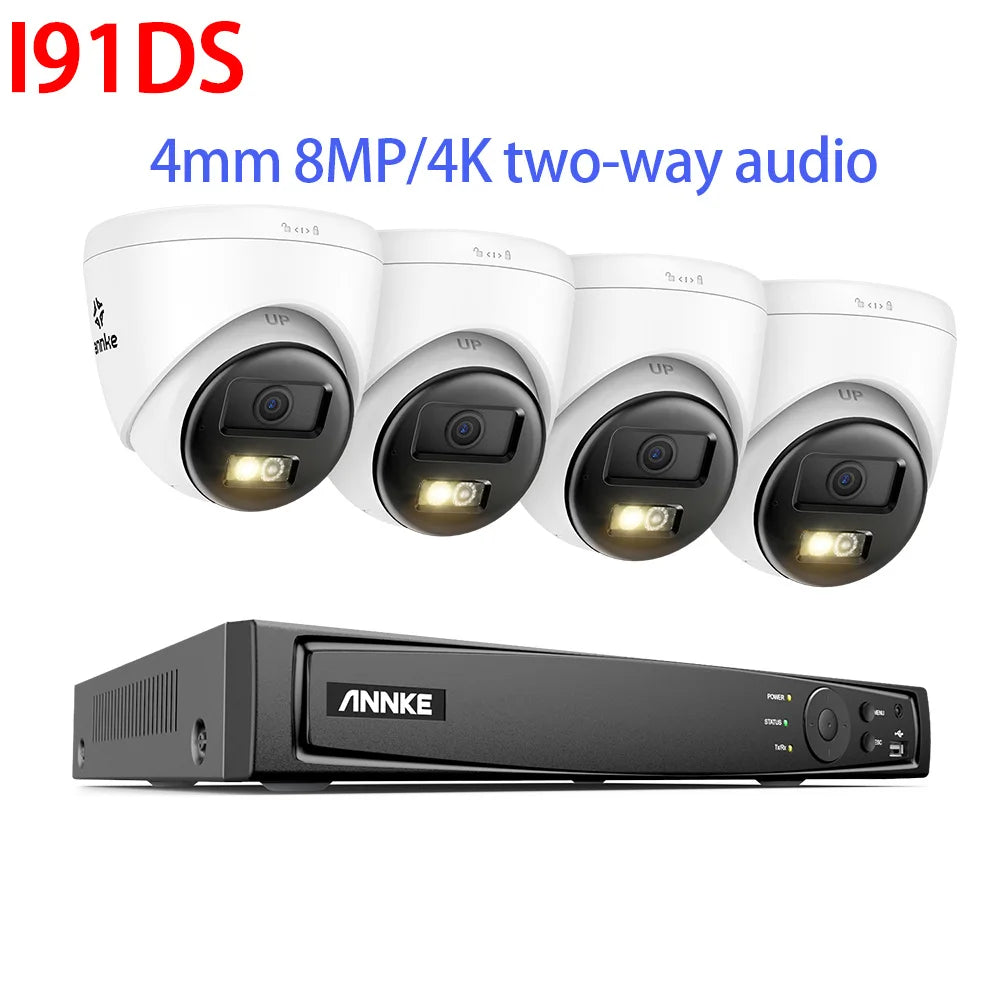

ANNKE 4K Ultra HD POE Video Surveillance System 8CH NVR Recorder 12MP 8MP Security Cameras CCTV Kit Audio Recording 3K Ip camera
ANNKE 4K Ultra HD POE Video Surveillance System 8CH NVR Recorder 12MP 8MP Security Cameras CCTV Kit Audio Recording 3K Ip camera
Couldn't load pickup availability
SPECIFICATIONS
Audio Input: Built-in Microphone, record with audio
Audio input: Bulit-in Microphone
Brand Name: ANNKE

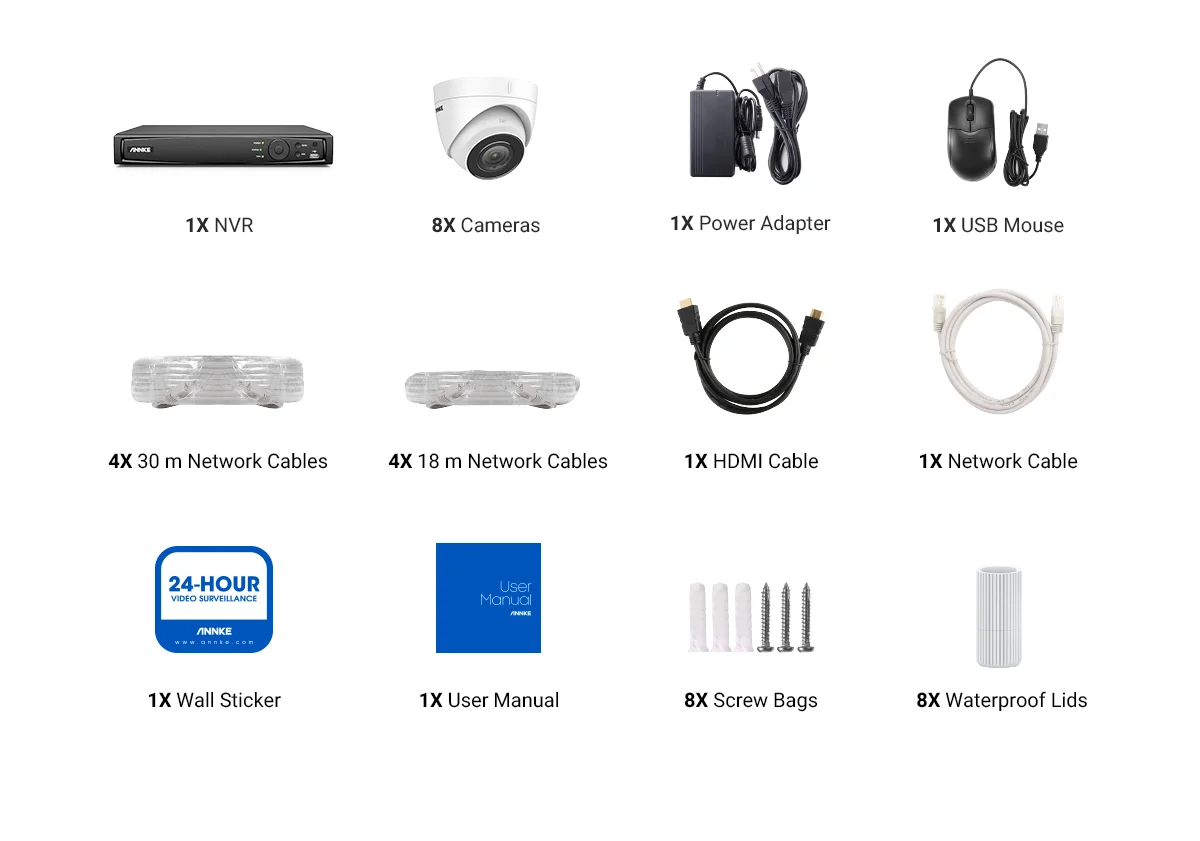

Cable Length: 30m,18m
Certification: CE,FCC
Feature 1: 8mp poe ip camera
Feature 10: security camera nvr
Feature 11: VIDEO RECORDER
Feature 12: annke 4k
Feature 13: security camera system
Feature 14: cctv camera security system kit
Feature 15: annke 8mp 4k
Feature 16: annke 5mp
Feature 2: nvr system
Feature 3: surveillance camera
Feature 4: video surveillance 4k
Feature 5: kit video surveillance
Feature 6: poe system
Feature 7: cctv camera
Feature 8: video security system
Feature 9: video surveillance
High-concerned chemical: None
IR Cut Filter: YES
Image sensor: 1/2.5" Progressive Scan CMOS
Min.Illumination: 0.01
Model Number: N48PAW-I91DM/I51EM/91DN/91DS
Night Vision Distance: Up to 100ft/30m
Number of Infra-Red LEDs/Lens: 4MM/2.8MM
Origin: Mainland China
PCS of Camera: 4PCS,8PCS
Resolution: 8MP
Smart home platform: Other
Supplement Light Range: IR: up to 30 m, wite Light: up to 20 m
Supplement Light Type: Smart Dual-Light, IR, White Light
TV System: NTSC,PAL
Video Compression: H.264+/H.264/H.265/H.265+/MPEG4
Video Input: 8 Channel
Video Output: HDMI Up to 4K,VGA Up to 1080P
Wide Dynamic Range/DNR: Digital WDR/3 DNR
Smart Dual-Light: advanced technology with long range, IR light works normally at night, and it switches to white light when human or vehicle are detected.
[Support Home Assistant & Apple HomeKit]
Remote Access and Smart Motion Alerts
Access & control the system remotely with free ANNKE software via 3G/4G/5G or WiFi on your smartphone, tablet or computer when you are in the office or traveling. Get instant app pushes & email alerts with snapshots when there are motion events.

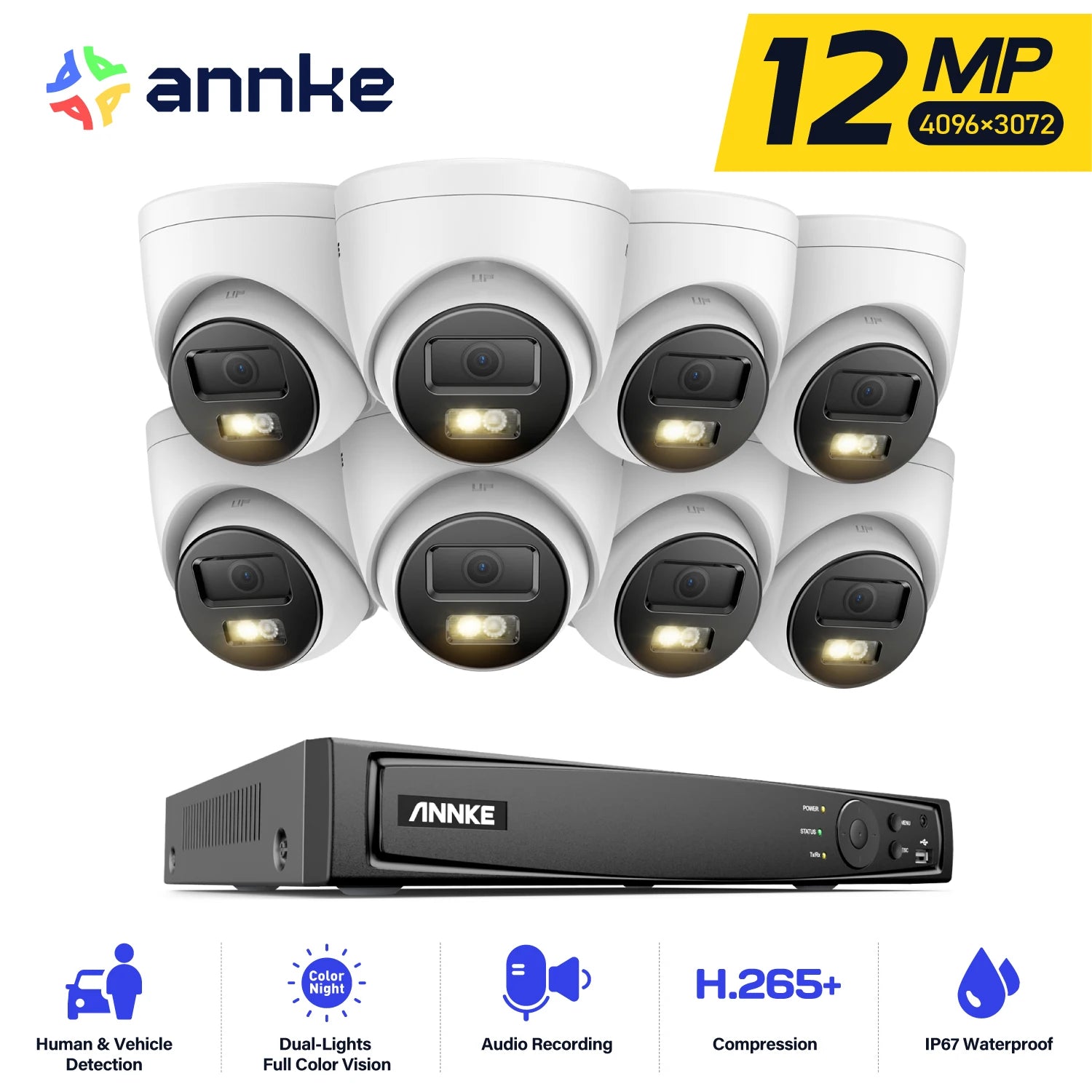

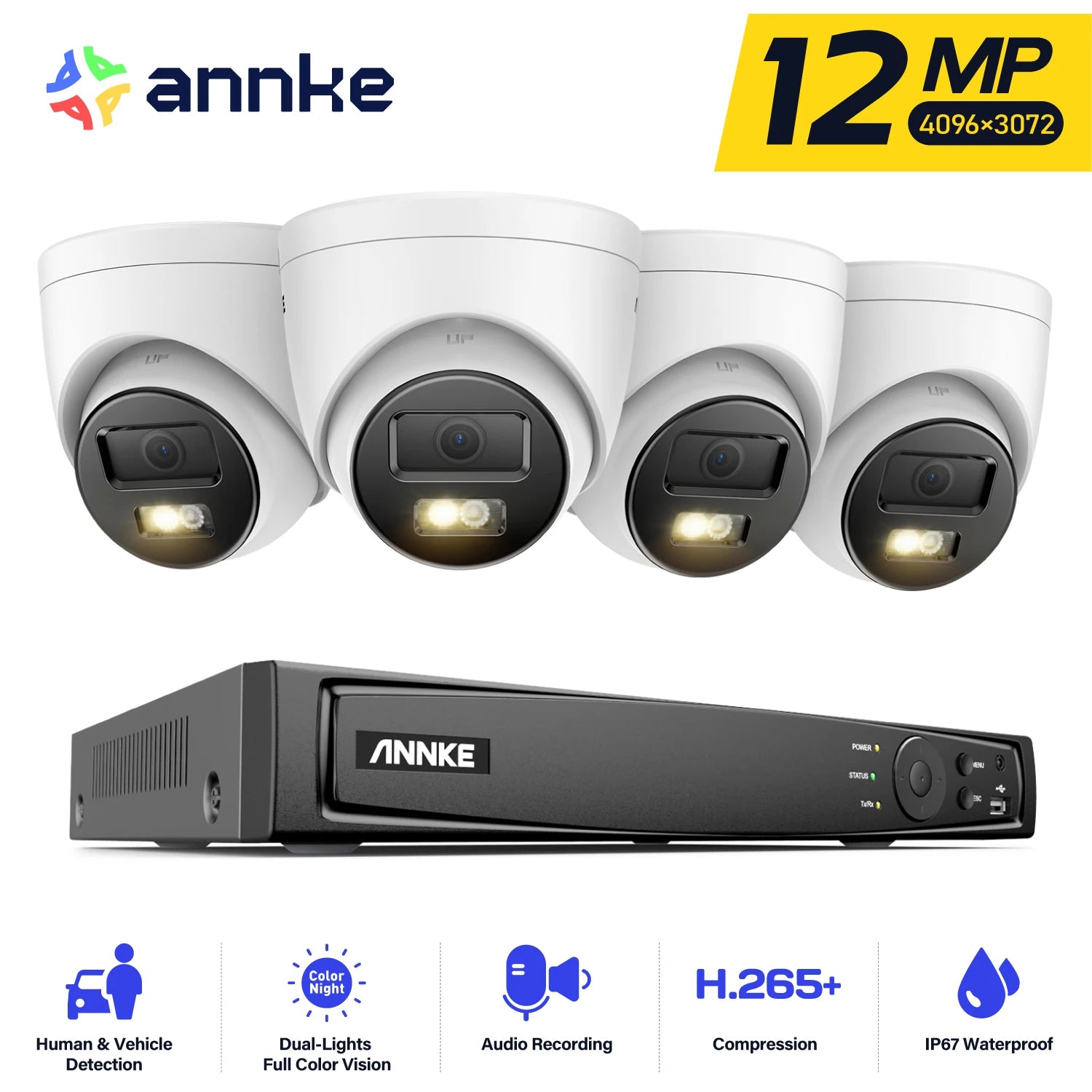

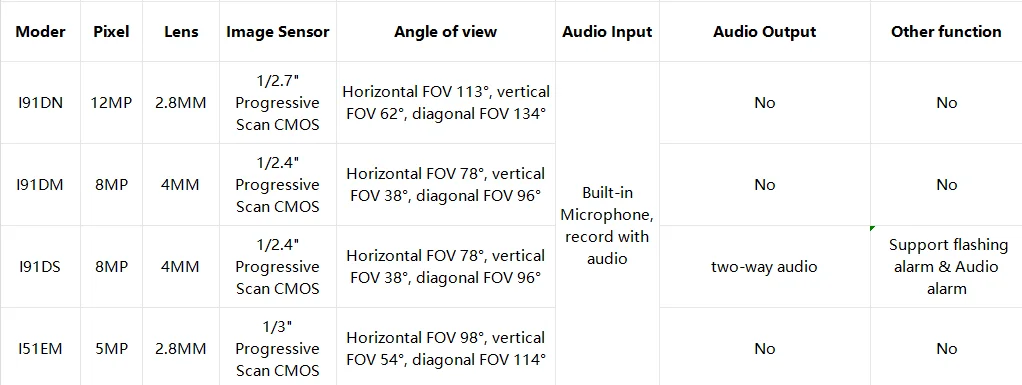

12MP CAMERA I91DN:
NVR | ||
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
8CH PoE |
|
Video Output |
HDMI up to 4K, VGA up to 1080p |
|
Audio Input/Output |
1/1 RCA |
|
Incoming/outgoing Bandwidth |
80/80 M |
|
Max Recording Resolution |
Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera) |
|
Max Playback Resolution |
Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera) |
|
Max Playback Channel |
8CH |
|
Max Playback Capacity |
1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
|
ONVIF Protocols |
Support |
|
Hard Drive |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity |
|
External Interface |
Network Interface |
1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
PoE |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
|
USB interface |
USB 2.0*2 |
|
Smart Function |
Deep learning |
Human and vehicle targets detection(Need IP camera support) |
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting |
|
General |
Operating Power |
DC 48 V |
Power Consumption |
≤10 W (Without HDD and PoE) |
|
PoE: Max 25.5 W for Single Port | ||
Working Temperature |
14 °F ~ 131 °F/-10 °C ~+55 °C |
|
Dimensions (W X H X D) |
12.4” X 9.4” X 1.9”/315 X 240 X 48 mm |
|
Weight (Without Hard Disk) |
2.2 lbs/1 kg |
|

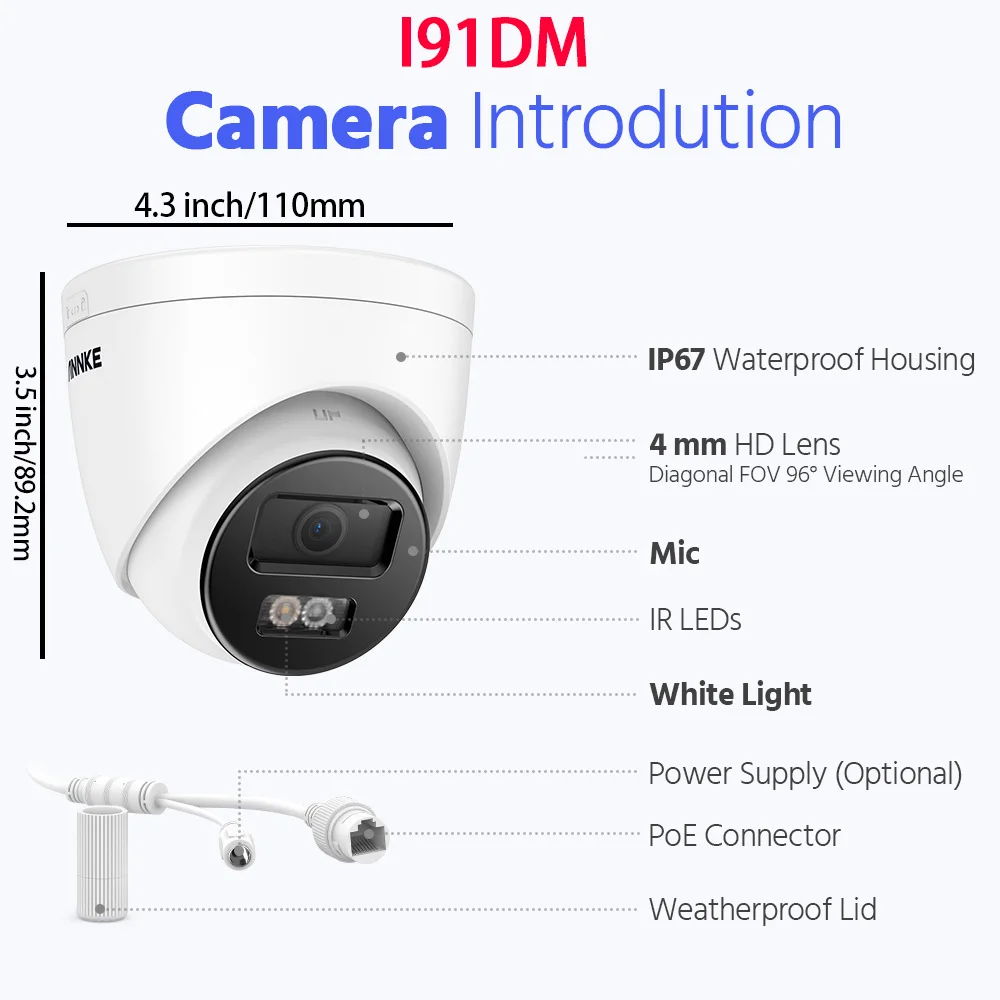

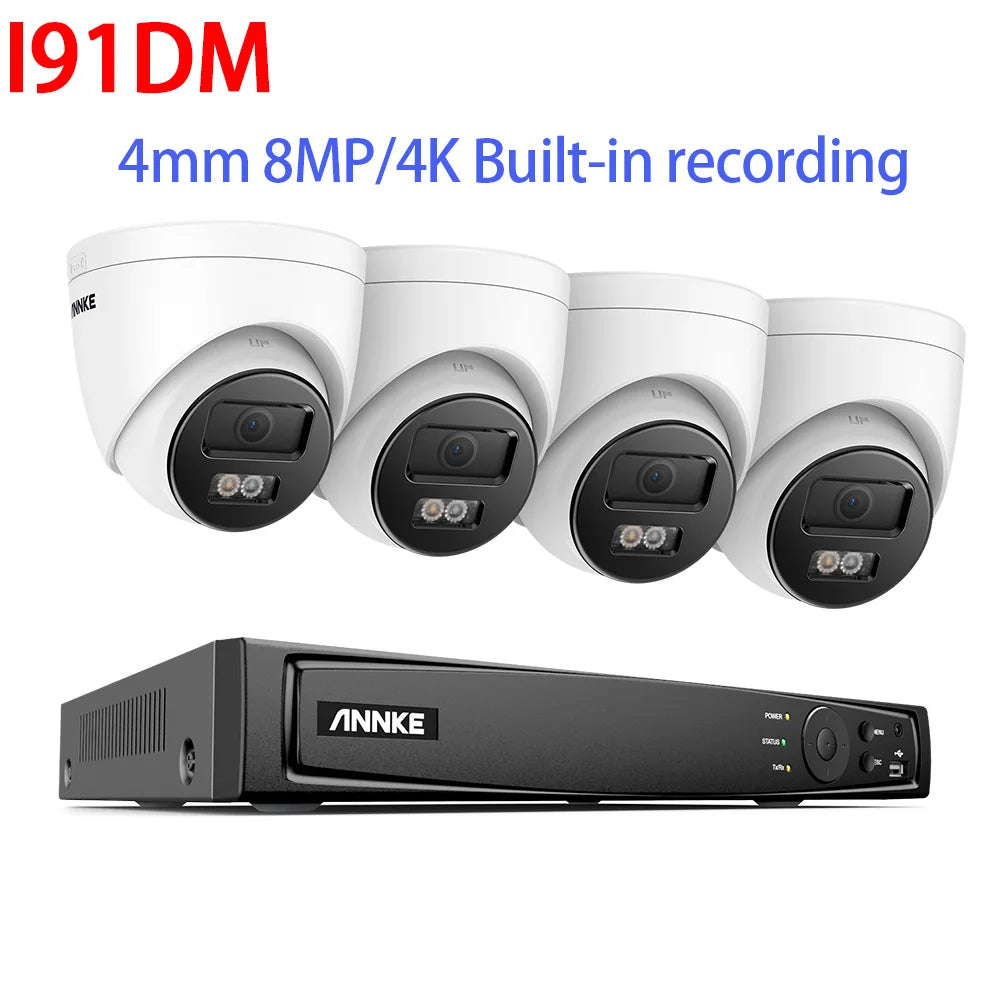

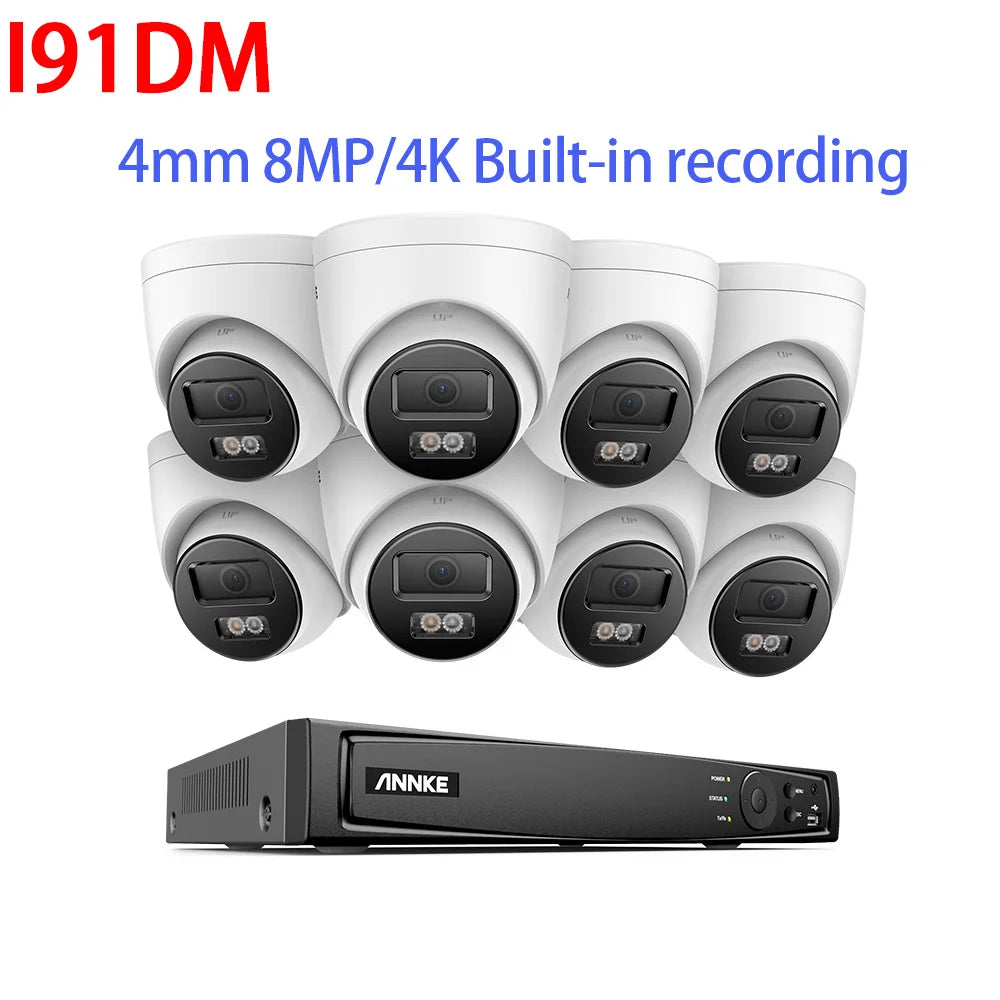

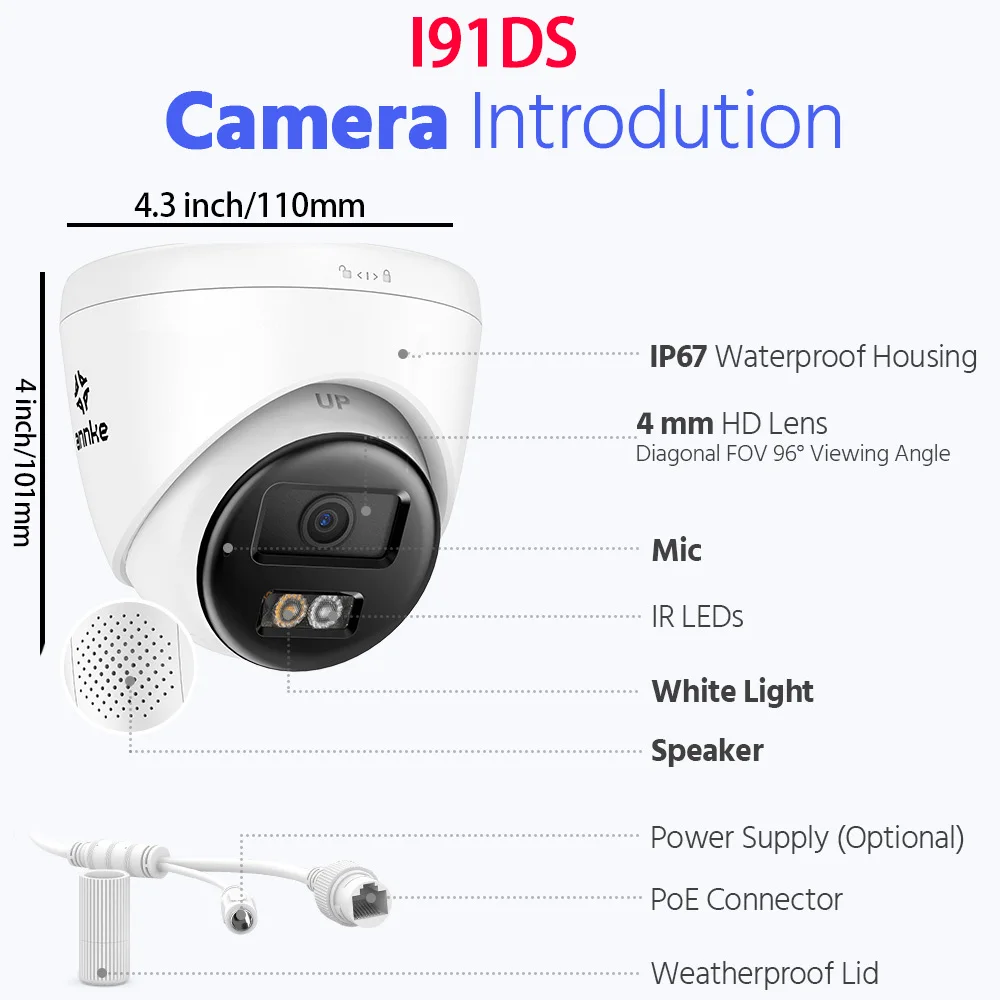

8MP IP Camera | ||
Camera |
Image Sensor |
1/2.4" Progressive Scan CMOS |
Max resolution |
3840*2160(8MP) |
|
Main Stream |
50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Substream |
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 16 Mbps |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
|
Audio Input |
Built-in Microphone, record with audio |
|
Lens |
4 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
IR: up to 30 m, white Light: up to 20 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
|
API |
Open Network Video Interface Version (Profile S, Profile T, Profile G) |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate mode, mirror, password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 |
|
Dimension (L X W X H) |
Ø110 mm × 89.2 mm (Ø4.3" × 3.5") |
|
Weight |
0.7 lb./340 g |
|

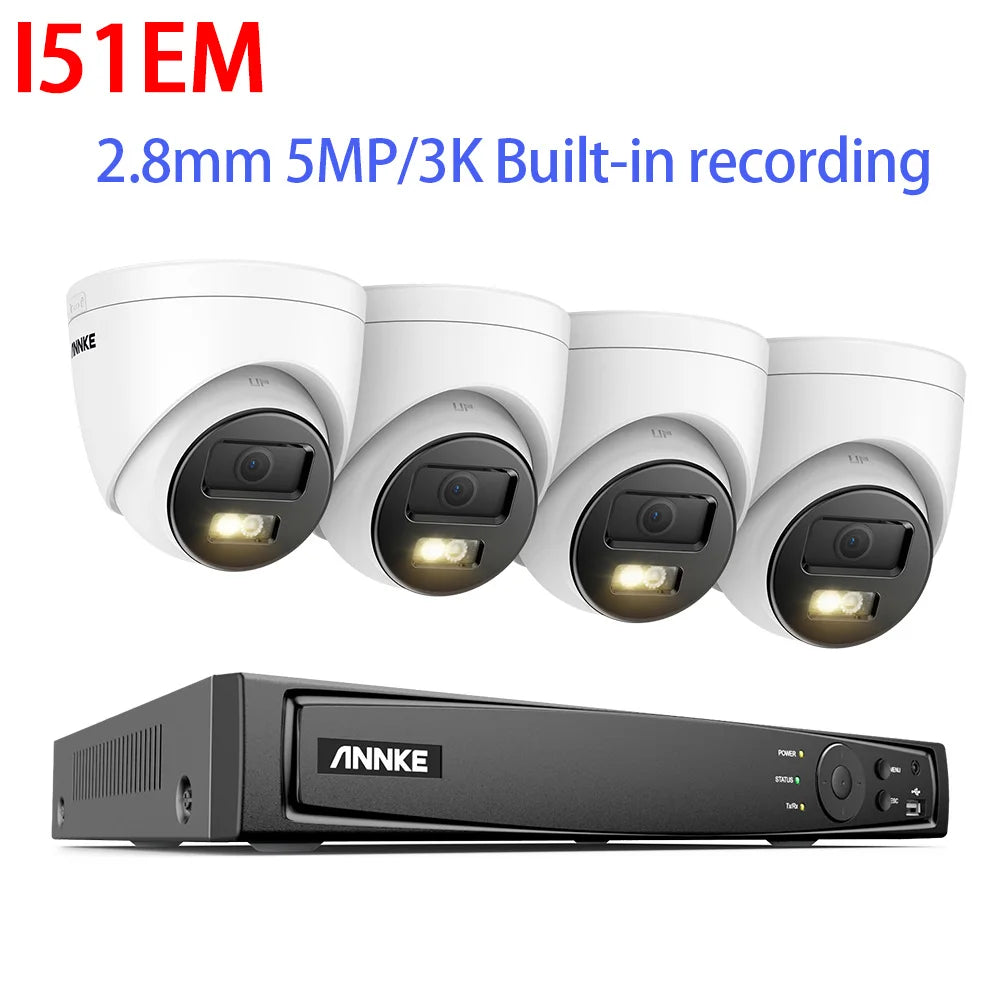

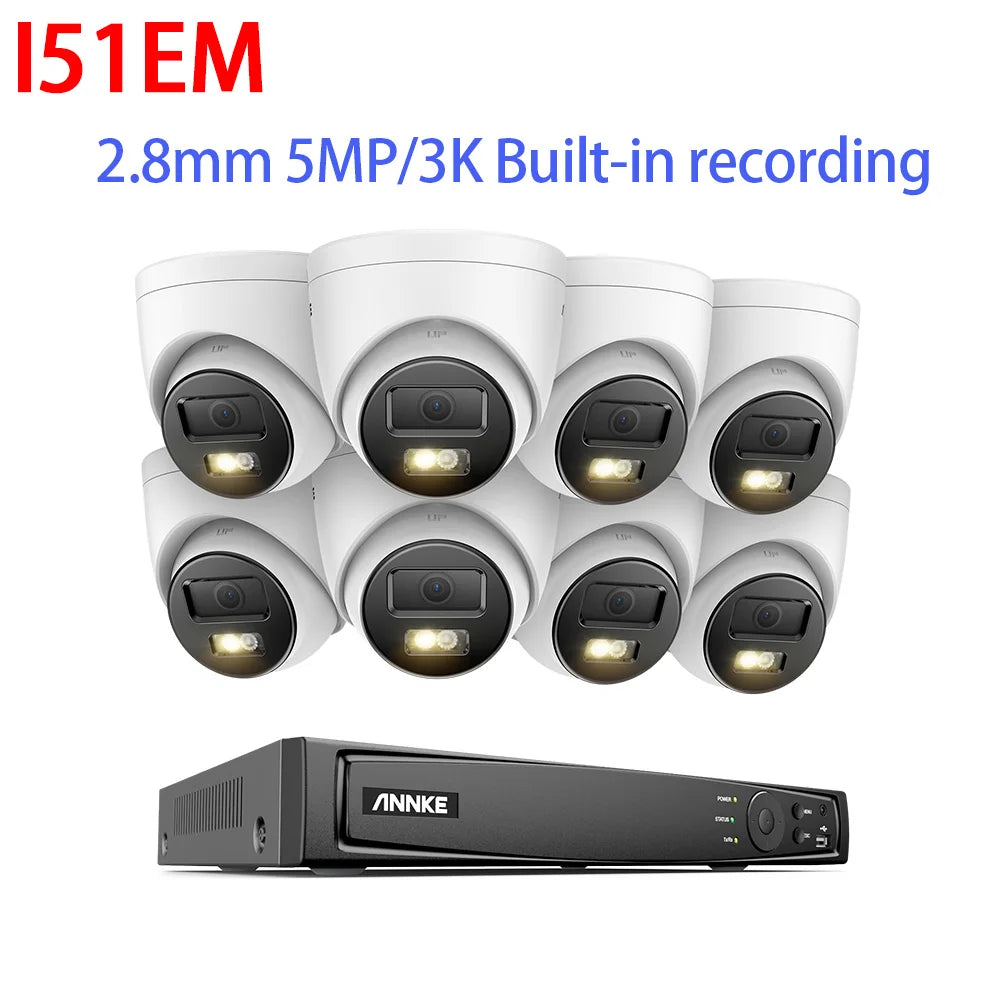

3K 5MP/12MP IP Camera | ||
Camera |
Image Sensor |
1/3" Progressive Scan CMOS |
Max resolution |
3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display |
|
Main Stream |
50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720) |
|
Substream |
50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 6 Mbps |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
|
Lens |
2.8 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114° |
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
IR: up to 30 m, wite Light: up to 20 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
|
API |
Open Network Video Interface Version 18.12 |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Mirror,rotate,password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 256 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 |
|
Dimension (L X W X H) |
Ø110 mm × 89.2 mm (Ø4.3" × 3.5") |
|
Weight |
Approx. 340 g (0.7 lb.) |
|
Dual-light camera: three lighting modes to choose from
1. Intelligent mode: By default, the infrared light turns on at night and the picture is black and white. When someone and a car trigger it, the infrared light goes out and the white light turns on to turn into a color picture.
2. Infrared mode: infrared fill light 30 meters.
3. White light mode: white light fill light 20 meters.
